Author Topic: Anti reversion chamber fab  (Read 25126 times)

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Anti reversion chamber fab
« on: April 26, 2010, 08:43:45 PM »

We are going to be installing these upstream of a x-pipe on a ~500 hp naturally aspirated car then dyno'ing with and without them. Math calc's were all based off the us patent on anti reversion chambers.



Here's the fab up:















Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

danz

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 6783
  • 0-60 in 2.7 seconds
Re: Anti reversion chamber fab
« Reply #1 on: April 26, 2010, 08:47:59 PM »

wow u tig without gloves?  thats impressive.

my shit feels like its gonna light on fire when i use a tig bare hand.
Logged
10.510 @ 133.09 mph D16Z6 EJ6
10.912 @ 127.33 mph D16A6 ED6

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #2 on: April 26, 2010, 08:51:41 PM »

Steve tacks without gloves or a helmet because he's a lazy bastard and nobody is watching half the time. Nobody does any type of continuous welding without proper equipment here tho.
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

turbob16hatch

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2080
Re: Anti reversion chamber fab
« Reply #3 on: April 26, 2010, 09:10:10 PM »

very nice looking peice. I wear fabricator gloves solely when tig welding. I hate those damn "tig" gloves.
Logged

weirtech

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2341
    • Weir Technologies Inc.
Re: Anti reversion chamber fab
« Reply #4 on: April 26, 2010, 10:26:52 PM »

i'd think you'd see more gains by placing 4 individual ones closer to the head like on the hytech header.
Logged

caged

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 364
Re: Anti reversion chamber fab
« Reply #5 on: April 27, 2010, 02:30:22 AM »

Ill be interested in the results, what are you expecting to gain?
Logged
11.6@126mph 1993 mitsubishi GSR.

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: Anti reversion chamber fab
« Reply #6 on: April 27, 2010, 02:32:42 AM »

Ill be interested in the results, what are you expecting to gain?
hand cancer
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

ifly87

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 294
Re: Anti reversion chamber fab
« Reply #7 on: April 27, 2010, 03:30:51 AM »

Ill be interested in the results, what are you expecting to gain?

-$30 out of your checking account?
Logged
Sorry dirtyturbopantyripper, you are banned from using this forum!
You are banned! K Series >gtgt D Series

Lol...Fags

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #8 on: April 27, 2010, 11:55:25 AM »

We are trying to prevent reversion at the x-pipe. These cars are really sensitive at the exhaust cross-over.

Aaron, In this case, we would need 10 individual anti reversion chambers if we were to try to install it into the headers. It would be something to try - though right now we are focusing just on the exhaust.
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

Minor Threat

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2401
Re: Anti reversion chamber fab
« Reply #9 on: April 27, 2010, 12:06:41 PM »

M5?
Logged
"quotquotand the welds look like a pigeon had 1 too many chili-dogs, whoever built them needs to go throw their tools in the ocean."quotquot

www.facebook.com/enhancedautoperformance

weirtech

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2341
    • Weir Technologies Inc.
Re: Anti reversion chamber fab
« Reply #10 on: April 27, 2010, 12:23:12 PM »

yeah, it would take quite a bit more time to make that many.

in for results!
Logged

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #11 on: April 27, 2010, 12:39:03 PM »

Yes, M5.

Fabbin up the x-pipe.










Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

92CXyD

  • Twincharged Smeghead
  • Global Moderator
  • Certified OG
  • *****
  • Online Online
  • Posts: 6753
  • I look around and all I see is Smegheads
Re: Anti reversion chamber fab
« Reply #12 on: April 27, 2010, 01:03:14 PM »

In for more picts, info, and results.

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #13 on: April 27, 2010, 01:15:15 PM »







« Last Edit: April 27, 2010, 01:30:12 PM by mandrel-bends »
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #14 on: April 27, 2010, 02:00:41 PM »

Completed x-pipe with anti-reversion chambers. Will be installing on thursday. Dyno on friday.

Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

dvst8r

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3737
  • Unobtainium
Re: Anti reversion chamber fab
« Reply #15 on: April 27, 2010, 02:01:51 PM »

In terms of exhaust flow, are the reversion chambers pre or post x pipe?
Logged
There are two kinds of people: Sheep and sharks. Sharks are winners and they don'#039#039t look back '#039#039cause they don'#039#039t have necks. Necks are for sheep.

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #16 on: April 27, 2010, 02:06:44 PM »

Currently PRE:

Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

dvst8r

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3737
  • Unobtainium
Re: Anti reversion chamber fab
« Reply #17 on: April 27, 2010, 02:13:25 PM »

Iirc Dave (Passenger) Did an M5 exhaust not that long ago that made 40-50hp more on the dyno then the stock one. He will have to chime in on the exact numbers and specs though.
Logged
There are two kinds of people: Sheep and sharks. Sharks are winners and they don'#039#039t look back '#039#039cause they don'#039#039t have necks. Necks are for sheep.

speedjunky01

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 1015
Re: Anti reversion chamber fab
« Reply #18 on: April 27, 2010, 03:10:29 PM »

will you be keeping the cats?
Logged

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #19 on: April 27, 2010, 03:33:33 PM »

We were planning on removing the cat but it will likely be tested again with high-flow cats as well. Stock the car made 406 whp, there is a video of it on tunedbypsi.com in the dyno runs area. I would like to hear from dave on what he did.
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

Passenger

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 1954
Re: Anti reversion chamber fab
« Reply #20 on: April 27, 2010, 04:16:44 PM »

I didn't do an X or H pipe, and I do usually try to avoid them, but I am pretty curious as to how this is going to work out for you, can't wait to see the results. You won't be able to put the cones in the header, the headers are a really neat piece of manufacturing, lots of fancy tube forming, but some of the reliefs on the tube near the head flange will make it a bit difficult to put the cones there.

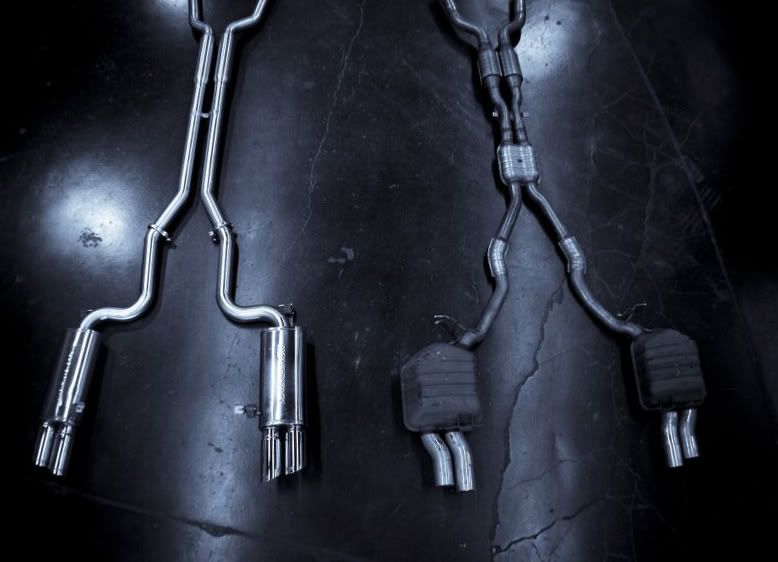

This was the one I built:

Logged

92CXyD

  • Twincharged Smeghead
  • Global Moderator
  • Certified OG
  • *****
  • Online Online
  • Posts: 6753
  • I look around and all I see is Smegheads
Re: Anti reversion chamber fab
« Reply #21 on: April 27, 2010, 04:35:20 PM »

An old Hot rod trick for placement of x-pipes is to draw a crayon line or paint a line along the pipes.

Then do a quick quarter mile run and then see where the crayon/paint stops melting and that is where you cut for x-/h-/balance tubes.

Saw that in Hot Rod Magazine in the late '90s they swear by it. :yes:

PhilStubbs

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 5879
  • Teh Secksy.....I has it
Re: Anti reversion chamber fab
« Reply #22 on: April 27, 2010, 08:22:50 PM »

in for the results as i am about to make an N/A truck exhaust
Logged
obd1>gtgtall

 fucking box started smoking and i saw a flame start up so i grabbed a bucket of water and splashed it on the breaker box.

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: Anti reversion chamber fab
« Reply #23 on: April 27, 2010, 09:12:16 PM »

Are you planning on selling anti-reversion chamber kits for us lowrents, so we can DIY?

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #24 on: April 27, 2010, 09:14:07 PM »

Dave - I love those mufflers, I have them on the 550i. They sound sick.

That stock exhaust is different then mine. Ours has a dual muffler system on each side. What year was the M5?

The system you designed is basically what we are going to do just with some additional hardware. Was the car chipped when they dyno'd it? Intake?

My 550i was super sensitive to not running any type of cat or x-pipe, we actually lost a good amount of torque when we removed the cat. When we added high flow cats, and a similiar x-pipe, we gained 14 whp. When it ran just an x-pipe with no cat, we lost 26 foot pounds of torque and gained about 16 hp at the top of the power band.
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #25 on: April 27, 2010, 09:14:54 PM »

I dont see why not. Would need to figure out how to make them affordable though.

Are you planning on selling anti-reversion chamber kits for us lowrents, so we can DIY?
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: Anti reversion chamber fab
« Reply #26 on: April 27, 2010, 09:19:20 PM »

Lack of line production machinery/demand for in volume might make the price suck for us, eh?

It's a shitty world to live in, sometimes.

PhilStubbs

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 5879
  • Teh Secksy.....I has it
Re: Anti reversion chamber fab
« Reply #27 on: April 27, 2010, 09:23:16 PM »

those cones are expensive. i priced some stuff from megs exhaust once cause i wanted to make an expansion chamber for my scooter. it was crazy. i just got a piece of tubing that was the length of the whole chamber, and the diameter of the thickest part and cut longitudinal pie cuts out of it to make the smaller ends. took an hour, but was a hell of a lot cheaper.
Logged
obd1>gtgtall

 fucking box started smoking and i saw a flame start up so i grabbed a bucket of water and splashed it on the breaker box.

Passenger

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 1954
Re: Anti reversion chamber fab
« Reply #28 on: April 28, 2010, 01:07:19 AM »

Dave - I love those mufflers, I have them on the 550i. They sound sick.

That stock exhaust is different then mine. Ours has a dual muffler system on each side. What year was the M5?

The system you designed is basically what we are going to do just with some additional hardware. Was the car chipped when they dyno'd it? Intake?

My 550i was super sensitive to not running any type of cat or x-pipe, we actually lost a good amount of torque when we removed the cat. When we added high flow cats, and a similiar x-pipe, we gained 14 whp. When it ran just an x-pipe with no cat, we lost 26 foot pounds of torque and gained about 16 hp at the top of the power band.

Adam, yes those magnaflow mufflers are awesome, I have used them on all sorts of cars, magnaflow really does make a solid product.

That car wasn't an M5, it was a M6, I think it is an '06 or '07? Not too sure, I think it is the same 5.0l V10. Does the 550i have the same engine as the M5 too?
The M6 was not chipped, nor do I believe it had any additional hardware. I know it was dyno tested before the exhaust, and I do think it was tested afterwards, but with some other modifications, I didn't do the testing myself, nor did I ever see the charts anyways.

I've found with modern engines equipped from the manufacturer with some sort of balance between the the banks often respond better with aftermarket exhaust that are likewise, up until the point of proper re tuning of the engine management.

I'd really like to see your results from the anti reversion chambers so far down the exhaust stream, I've never seen them placed like that, but I think they are close enough to the headers to still have a positive impact.
Logged

mandrel-bends

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 334
    • Columbia River Mandrel Bending
Re: Anti reversion chamber fab
« Reply #29 on: April 28, 2010, 07:45:06 PM »

I'll run some times on them when we do production for a few of these units and see where they sit. I think they are sub $50 parts though.

Lack of line production machinery/demand for in volume might make the price suck for us, eh?

It's a shitty world to live in, sometimes.
Logged
Columbia River Mandrel Bending
CNC Mandrel Bending &ampamp Precision Waterjet Cutting
http://www.mandrelbends.com
